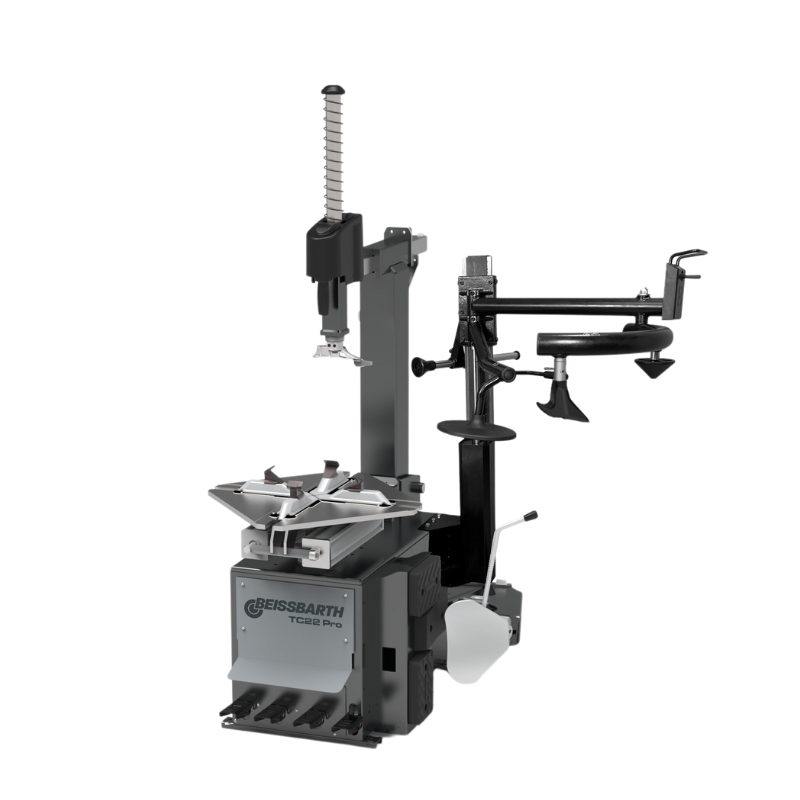

Beissbarth TC22 Pro Tyre changing machine

Automatic tilt-back tyre changer | 10-25" working range | 12" standard bead breaker | TCX.PRO assistance column | WDK | 400V

Square turntable with automatic centering jaws

• Clamping range from 10-25"
• Double 80mm cylinders for maximum clamping power
• 2 rotation speeds: 8 & 16 rpm
• Square shape for easier lever use

Robust mounting column and head

• Easy tilting via pedal
• Quick vertical and horizontal movement of arm
• Pneumatic locking

Powerful bead breaker side shovel

• Quick and effective loosening of the bead
• Up to 12" tyre width
• Three-way adjustable blade
• Controlled via pedal
• Anti-skid rubber pad protects tyre and rim

Full control with four pedals

• Pedal control for rotation, side shovel, column tilting, and clamping
• Removable pedal unit for easier maintenance

High rigidity by design

• Full metal pedals
• Powerful 50x50mm horizontal arm
• Metal front cover

TCX.PRO: entry-level assistance column fully equipped to handle hard UHP and run flat tyres

• Bead roller to push bead in drop center
• Travelling bead pusher arm to keep bead in drop center during rotation
• Bottom disc roller to easily demount heavy, stiff, or wide tyres
• Rim pressing cone to simplify external clamping on low-profile tyres
• Simultaneous height adjustment of all tools

WDK-approved: Secure mounting and demounting of UHP and runflat tyres

Whats included with the TC22Pro?

• 5x front head protection
• 2x rear head protection
• Inflation gun
• WDK lever
• WDK mounting clamp RFT/UHP
• WDK rim protector
• Rim protection for lever
• Bead breaker blade protection
• Brush
• 400V plug

Note: unit comes fully assembled

TC22 Pro Specifications

Max. wheel diameter  -  39" | 1000mm

Bead breaker force    -    2600 N

Operating pressure   -   8 - 12 bar

Max. wheel width     -      12" | 305mm

Length -1360 mm

Height -1850 mm

Width -  930 mm

Power supply -   400V | 3Ph | 50-60Hz

Motor power   -  0,8 - 1,1 kW

Max. clamping capacity       -       25 "

Max. torque   -    1200 Nm

Space requirement width      -    1240 mm

Space requirement length    -     1700 mm

Rotation speed - 8 | 16 rpm

Packaging length      -      1050 mm

Packaging width        -      1260 mm

Packaging height      -      2100 mm

Min. clamping capacity        -       10 "

Number of mounting speeds  -  2

Clamping device design        -      Clamping plate

Min. inner clamping range     -    12 "

Max. inner clamping range   -      25 "

Min. outer clamping range    -     10 "

Max. outer clamping range    -    22 "

Mounting head design - With tire lever

Mounting arm design  -  Moveable

Mounting column design      -      tiltable

Bead breaker cylinder force  -    25000N @ 10bar

Beda breaker force on shovel  - 13000N @ 10bar

Tyre inflation   -  manual control

Turntable height       -       670 mm

Bead breaker operation      -        Foot control
