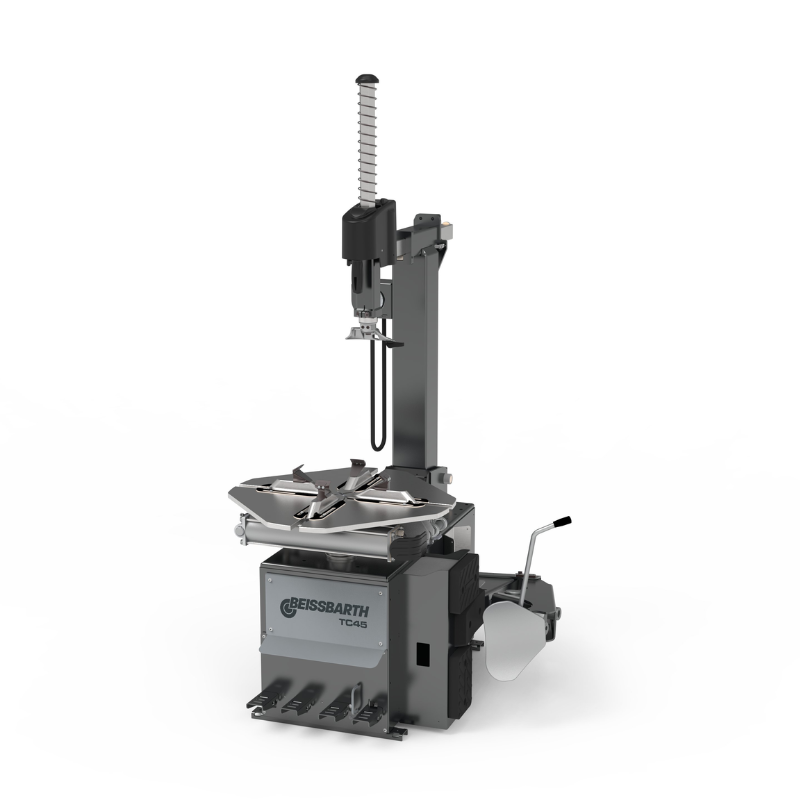

Beissbarth TC45 Tyre Changing Machine

Automatic tilt-back tyre changer | 10-27" working range | 15" standard bead breaker | pedal inflation | 400V

Square turntable with automatic centering jaws

• Clamping range from 10-27"
• Double 80mm cylinders for maximum clamping power
• 2 rotation speeds: 8 & 16 rpm
• Square shape for easier lever use

Robust mounting column and head

• Easy tilting via pedal
• Quick vertical and horizontal movement of arm
• Pneumatic locking

Powerful bead breaker side shovel

• Quick and effective loosening of the bead
• Up to 15" tyre width
• Three-way adjustable blade
• Controlled via pedal
• Anti-skid rubber pad protects tyre and rim

Full control with four pedals plus side inflation pedal

• Pedal control for rotation, side shovel, column tilting, and clamping
• Removable pedal unit for easier maintenance
• Safety separator for rotation pedal
• Side inflation pedal

High rigidity by design

• Full metal pedals
• Powerful 50x50mm horizontal arm
• Metal front cover

Scope of deliveries:

• 5x front head protection
• 2x rear head protection
• Standard lever
• Brush
• 400V plug

Note: unit comes with disassembled pole

TC45 Specifications

Max. wheel diameter  -   46" | 1160 mm

Operating pressure    -    8 - 12 bar

Max. wheel width      -      15" | 381mm

Length  - 1450 mm

Height  - 1900 mm

Width  - 1030 mm

Power supply  -  400V | 3Ph | 50-60Hz

Motor power  -   0,8 - 1,1 kW

Max. clamping capacity        -      27 "

Max. torque   -    1200 Nm

Space requirement width     -     1450 mm

Space requirement length    -     1850 mm

Rotation speed  -  8 | 16 rpm

Packaging length      -      750 mm

Packaging width      -        1100 mm

Packaging height      -      1100 mm

Min. clamping capacity         -      10 "

Number of mounting speeds   -   2

Clamping device design       -       Clamping plate

Min. inner clamping range     -    12 "

Max. inner clamping range     -    27 "

Min. outer clamping range     -    10 "

Max. outer clamping range    -    24 "

Mounting head design  -  With tire lever

Mounting arm design   -   Moveable

Mounting column design       -     tiltable

Bead breaker cylinder force   -   25000N @ 10bar

Beda breaker force on shovel  - 13000N @ 10bar

Tyre inflation  -   Foot control

Turntable height        -      670 mm

Bead breaker operation       -       Foot control
