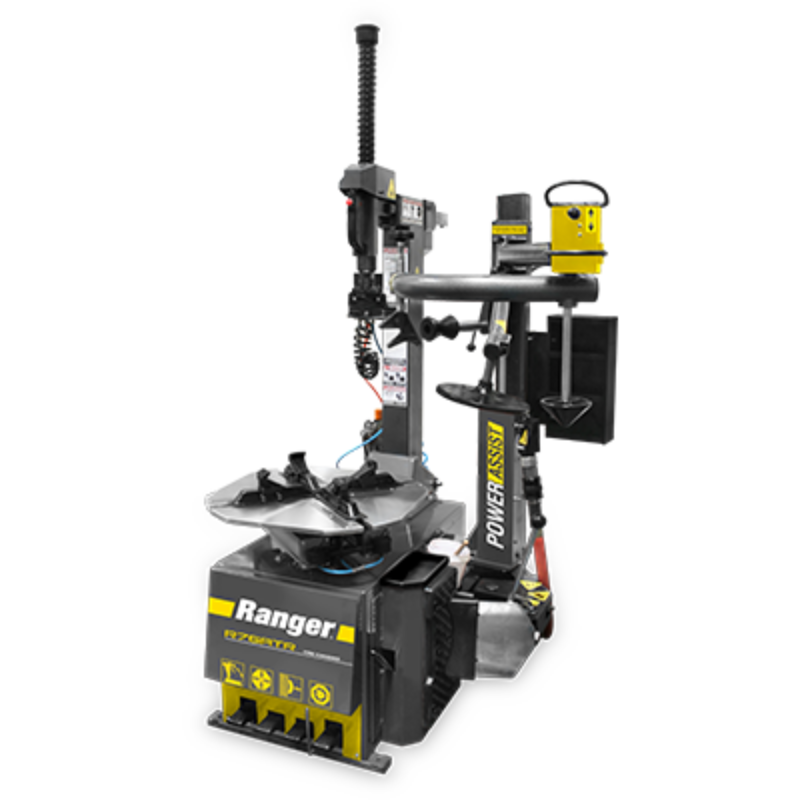

Ranger R76ATR Tyre Changing Machine

Simplify tyre changes and save time with the Ranger R76ATR tyre changing machine

Tyre changes shouldn't slow you down. The Ranger R76ATR is built to handle today's toughest tyres with ease, so you can get the job done faster, safer and without breaking a sweat.

Handles anything you throw at it

Stiff sidewalls? Run-flats? Oversized wheels? The R76ATR is designed to take on the most challenging tyres with no extra hassle.

Makes your job easier

Its intuitive controls and assist features make mounting and demounting tyres a breeze, even for tricky jobs.

Keeps your workshop moving

The R76ATR speeds up your workflow so you can handle more cars in less time without sacrificing quality.

Built tough for everyday use

This isn't just a piece of equipment, it's a tough performer, made to stand up to the demands of a busy shop.

Why you'll love it

The Ranger R76ATR doesn't just make tyre changes faster, it makes them smoother and safer for both you and your wheels. It's the tool you'll turn to again and again for reliable, efficient results.

Features

• 4 Clamps (Internal / External)
• Dual Pneumatic Cylinders
• Adjustable Pneumatic Blade
• Tilt-Back Tower Design
• Vertical Shaft / Tool Head Positioning
• Inflation System
• Inflation Gauge & Integrated Air Dump Valve
• Inflation Pressure Regulator/Limiter
• Water Filter
• Oiler / Lubricator
• Air Regulator
• Bead Tool/Tyre Iron
• Alloy-Steel Mount-Demount Head
• Nylon Mount-Demount Head
• Large Soap Bucket
• Soap Brush
• TurboBlast™ Bead Seating System
• Tool Tray / Bin Storage
• Motorcycle Turntable Clamps (optional)

Motor  - 3 HP (220 VAC 50-60 HZ)

Drive System Type    -     Electric / Hydraulic

Air Requirement - 110-175 PSI (8-12 BAR)

Wheel Clamping Method      -     4 Clamps - Internal / External

Table Clamping System - Dual Pneumatic Cylinders

Bead Breaking System  -  Adjustable Pneumatic Blade

Tower Design  -   Tilt-Back

Power Assist Tower  -  Single / Right-Side

Bead Lifting Roller(s)   -   Single / Right-Side

Upper Bead Assist Roller - Single / Right-Side

Vertical Shaft / Tool Head      -     Pneumatic / Locking

Powerful Bead Seating System  - TurboBlast™

Internal Rim Clamping Capacity - 254 mm - 762 mm (10” – 30”)

External Rim Clamping Capacity - 229 mm - 711 mm (9” – 28”)

Turntable Tyre Width Capacity (Mounting)      -     102 mm – 457 mm (4” – 18”)

Bead Breaker Tyre Width Capacity (Demounting) - 38 mm – 406 mm (1.5” – 16”)

Maximum Tyre Diameter      -      1,092 mm (43”)

Shipping Weight      -      440 kg (970 lbs.)
