Ranger R76ATR Tyre Changing Machine

Simplify Tyre Changes and Save Time with the Ranger R76ATR

Take the hassle out of tyre changes with the Ranger R76ATR-a high-performance tyre changing machine designed for busy Australian workshops. This R76ATR Tyre Changer is engineered to tackle everything from standard passenger wheels to tough run-flats and oversized 4WD tyres, delivering speed, safety and reliability every time.

How Does the R76ATR Make Tyre Changes Faster and Safer?

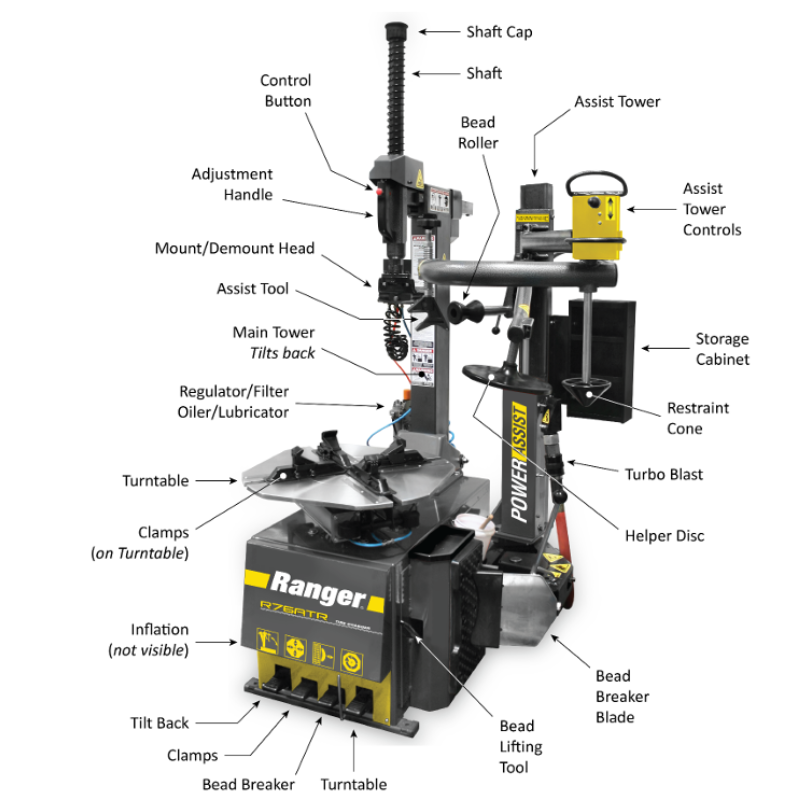

The Ranger R76ATR stands out with its tilt-back tower design and single right-side power assist arm, making it easy to handle low-profile, high-performance and stubborn tyres. The RimGuard™ clamps adjust to fit wheels from 10” to 30” internally and 9” to 28” externally, so you can work on a wide range of vehicles without fuss. The heavy-duty bead breaker with an adjustable blade and high-torque turntable ensures even the most challenging tyres are removed quickly and safely.

Tilt-back tower for fast wheel swaps and easy access

Power assist arm helps with stiff sidewalls and run-flats

Adjustable RimGuard™ clamps for a wide wheel range

High-torque electric turntable for smooth, efficient operation

Heavy-duty bead breaker with adjustable blade

Serve Your Customers Better with the R76ATR Tire Changer

The R76ATR is designed for operator comfort and efficiency. The TurboBlast™ bead seating system delivers a powerful burst of air to seat beads instantly, while the intuitive controls and ergonomic layout reduce fatigue during long shifts. The machine’s non-marring nylon mount/demount head protects alloy and custom rims, ensuring every job is damage-free.

TurboBlast™ bead seating for quick, secure inflation

Ergonomic controls and layout for less bending and reaching

Non-marring mount/demount head to protect wheels

Integrated inflation system with gauge and air dump valve

Why Choose the Ranger R76ATR for Your Workshop?

The R76ATR is built tough for Australian conditions, with stainless steel and aluminium pneumatic cylinders for long life and reduced vibration. The advanced drive belt system ensures smooth, reliable performance, while the included tool tray, soap bucket and bead lever tool keep everything you need within reach. With a compact footprint and robust construction, this machine is perfect for high-volume tyre shops and general workshops alike.

Built for busy workshops and high-throughput environments

Handles everything from standard cars to large 4WDs

Maintenance-friendly design for less downtime

Backed by Ranger’s solid warranty and local support

Get your workshop sorted with the Ranger R76ATR – the R76ATR Tyre Changer trusted by professionals for fast, safe and hassle-free tyre service, every time.

Downloads

 Ranger R76ATR Manual

Ranger R76ATR Warranty

Two Years (24-Months) Warranty on equipment structure*

One Year (12-Months) Warranty on operating components

R76ATR Features

• 4 Clamps (Internal / External)
• Dual Pneumatic Cylinders
• Adjustable Pneumatic Blade
• Tilt-Back Tower Design
• Vertical Shaft / Tool Head Positioning
• Inflation System
• Inflation Gauge & Integrated Air Dump Valve
• Inflation Pressure Regulator/Limiter
• Water Filter
• Oiler / Lubricator
• Air Regulator
• Bead Tool/Tyre Iron
• Alloy-Steel Mount-Demount Head
• Nylon Mount-Demount Head
• Large Soap Bucket
• Soap Brush
• TurboBlast™ Bead Seating System
• Tool Tray / Bin Storage
• Motorcycle Turntable Clamps (optional)

R76ATR Specifications

Motor  - 3 HP (220 VAC 50-60 HZ)

Drive System Type    -     Electric / Hydraulic

Air Requirement - 110-175 PSI (8-12 BAR)

Wheel Clamping Method      -     4 Clamps - Internal / External

Table Clamping System - Dual Pneumatic Cylinders

Bead Breaking System  -  Adjustable Pneumatic Blade

Tower Design  -   Tilt-Back

Power Assist Tower  -  Single / Right-Side

Bead Lifting Roller(s)   -   Single / Right-Side

Upper Bead Assist Roller - Single / Right-Side

Vertical Shaft / Tool Head      -     Pneumatic / Locking

Powerful Bead Seating System  - TurboBlast™

Internal Rim Clamping Capacity - 254 mm - 762 mm (10” – 30”)

External Rim Clamping Capacity - 229 mm - 711 mm (9” – 28”)

Turntable Tyre Width Capacity (Mounting)      -     102 mm – 457 mm (4” – 18”)

Bead Breaker Tyre Width Capacity (Demounting) - 38 mm – 406 mm (1.5” – 16”)

Maximum Tyre Diameter      -      1,092 mm (43”)

Shipping Weight      -      440 kg (970 lbs.)
